Specifications

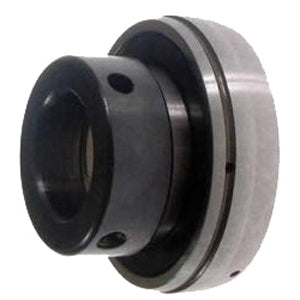

| title | AEL206D1 |
| price | $ 23.58 / each |
| Category | Insert Bearings Spherical OD |
| UNSPSC | 31171536 |
| Harmonized Tariff Code | 8482.10.50.00 |
| Manufacturer Name | NTN |
| Weight / kgm | 0.32 |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 0.683 |
| Bore | 1.181 Inch | 30 Millimeter |
| Other Features | Single Row | Light Duty | Steel Cage | With Set Screw | Has Trash Guard | Metric |
| Outside Diameter | 2.441 Inch | 62 Millimeter |
| Relubricatable | Yes |
| Global Part Number GPN | 564281 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.406 Inch | 35.7 Millimeter |
| Outer Race Width | 0.63 Inch | 16 Millimeter |
| Inner Race Profile | Narrow Inner Ring |
| Snap Ring | No |
| Outer Race Profile | Spherical |
| Seal Type | Single Lip Contour Riding |
