Specifications
| title | ZEF2307 |
| price | $ 1,038.14 / each |

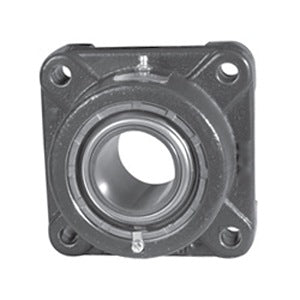

| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 40.5 |
| Bore | 3.438 Inch | 87.325 Millimeter |
| EAN | 698210695101 |
| Other Features | Double Row | Single Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 555980 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 4.375 Inch | 111.12 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 7 Inch | 177.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.9 Inch | 251.7 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | 2307U |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Clearance Seal |
| Pilot Configuration | No Pilot |
