Specifications

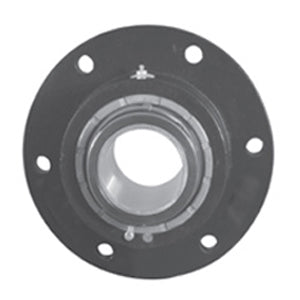

title | ZBR5507 |
price | $ 12,608.40 / each |
Category | Flange Block Bearings |
UNSPSC | 31171501 |
Harmonized Tariff Code | 8483.20.40.80 |
Manufacturer Name | REXNORD |
Inch - Metric | Inch |
Brand | REXNORD |
Weight / LBS | 184 |
Bore | 5.438 Inch | 138.125 Millimeter |
EAN | 698210830656 |
Other Features | Double Row | Double Collar | With Set Screw |
Relubricatable | Yes |
Global Part Number GPN | 555686 |
Mounting Method | Concentric Collar |
Length Thru Bore | 8 Inch | 203.2 Millimeter |
Cartridge Pilot Diameter | 13 Inch | 330.2 Millimeter |
Cartridge Pilot Depth | 2 Inch | 50.8 Millimeter |
Bolt Spacing | 7.25 Inch | 184.15 Millimeter |
Nominal Bolt Circle Diameter Round | 14.5 Inch | 368.3 Millimeter |
Housing Style | 6 Bolt Round Flange Cartridge |
Number of Mounting Holes | 6 |
Mounting Bolts | 7/8 Inch |
Insert Part Number | 5507U |
Housing Configuration | 1 Piece Solid |
Housing Material | Cast Iron |
Expansion / Non-expansion | Non-expansion |
Seals | Clearance Seal |
Pilot Configuration | With Pilot |
