FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

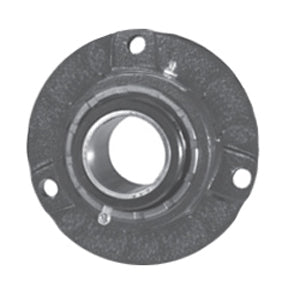

| title | ZB2108S |
| price | $ 533.88 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | REXNORD |
| Inch - Metric | Inch |
| Brand | REXNORD |
| Weight / LBS | 6.7 |
| Bore | 1.5 Inch | 38.1 Millimeter |
| EAN | 698210673536 |
| Other Features | Double Row | Single Collar | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 555865 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 2.875 Inch | 73.02 Millimeter |
| Cartridge Pilot Diameter | 3.563 Inch | 90.5 Millimeter |
| Cartridge Pilot Depth | 0.188 Inch | 4.775 Millimeter |
| Bolt Spacing | 4.328 Inch | 109.931 Millimeter |
| Nominal Bolt Circle Diameter Round | 5 Inch | 127 Millimeter |
| Housing Style | 3 Bolt Round Flange Block |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | 2108U |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Clearance Seal |
| Pilot Configuration | With Pilot |
