FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

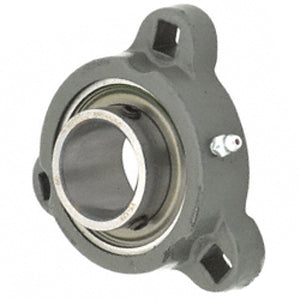

| title | VF3S-119M |
| price | $ 62.76 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | REGAL BELOIT |
| Weight / kgm | 0.68 |
| Inch - Metric | Inch |
| Brand | BROWNING |
| Weight / LBS | 1.5 |
| Bore | 1.188 Inch | 30.175 Millimeter |
| EAN | 0662289543212 |
| Other Features | Single Row | Spherical | Intermediate Duty | Temperature Range From -20 to 200 Degree F |
| Relubricatable | Yes |
| Global Part Number GPN | 19279 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.156 Inch | 29.362 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.1 Inch | 78.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.6 Inch | 90.5 Millimeter |
| Housing Style | 3 Bolt Flange Block |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 27/64 Inch |
| Insert Part Number | VS-119 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Contact |
| Pilot Configuration | No Pilot |
