Specifications
| title | USFBE5000-212 |
| price | $ 915.26 / each |

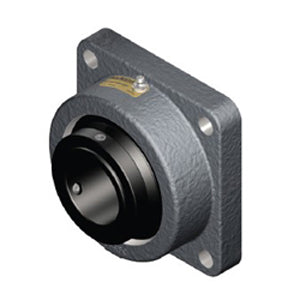

| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 26.4 |
| Bore | 2.75 Inch | 69.85 Millimeter |
| EAN | 662461365205 |
| Other Features | Double Row | Single Collar |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.875 Inch | 98.425 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 6 Inch | 152.4 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.5 Inch | 215 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/4 Inch |
| Insert Part Number | USI5000-212 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Ductile Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | No Pilot |
