Specifications

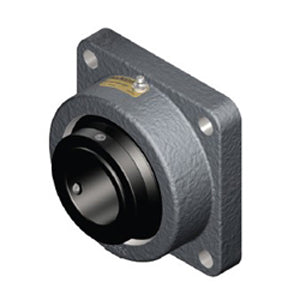

| title | USFBE5000-208 |
| price | $ 601.26 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.80 |
| Manufacturer Name | MORSE INDUSTRIAL |
| Inch - Metric | Inch |
| Brand | MORSE INDUSTRIAL |
| Weight / LBS | 19.1 |
| Bore | 2.5 Inch | 63.5 Millimeter |
| EAN | 662461365168 |
| Other Features | Double Row | Single Collar |
| Relubricatable | Yes |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 3.375 Inch | 85.725 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.375 Inch | 136.525 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.6 Inch | 193 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | USI5000-208 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Ductile Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Felt Labyrinth |
| Pilot Configuration | No Pilot |
