Specifications

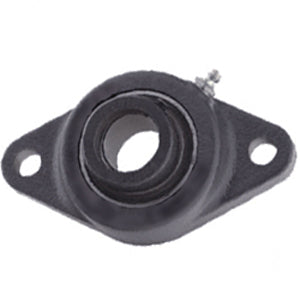

| title | UKFT208+H2308 |
| price | $ 96.72 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.639 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 3.4 |
| Bore | 1.378 Inch | 35 Millimeter |
| EAN | 0808250148585 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527093 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 1.811 Inch | 46 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.657 Inch | 143.7 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.7 Inch | 144 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 12 Millimeter |
| Insert Part Number | UK208 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
