FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

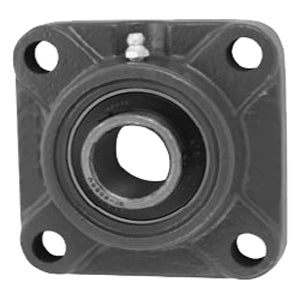

| title | UKFS312+H2312 |
| price | $ 334.27 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 7.17 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 15.8 |
| Bore | 2.165 Inch | 55 Millimeter |
| EAN | 0808250268696 |
| Other Features | Single Row | Spherical | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527090 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 2.441 Inch | 62 Millimeter |
| Cartridge Pilot Diameter | 6.299 Inch | 160 Millimeter |
| Cartridge Pilot Depth | 0.551 Inch | 14 Millimeter |
| Bolt Spacing | 5.906 Inch | 150 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.4 Inch | 212.1 Millimeter |
| Housing Style | 4 Bolt Square Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 20 Millimeter |
| Insert Part Number | UK312 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
