Specifications

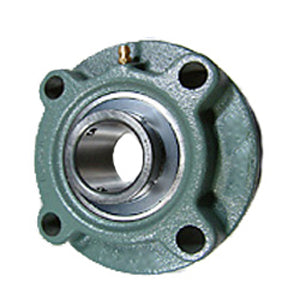

| title | UKFCX20+H2320 |
| price | $ 1,006.25 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 16.44 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 36.2 |
| Bore | 3.543 Inch | 90 Millimeter |
| EAN | 0808250334896 |
| Other Features | Single Row | Spherical | Medium Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527063 |
| Mounting Method | Adapter Sleeve |
| Length Thru Bore | 3.819 Inch | 97 Millimeter |
| Cartridge Pilot Diameter | 8.11 Inch | 206 Millimeter |
| Cartridge Pilot Depth | 1.102 Inch | 28 Millimeter |
| Bolt Spacing | 6.6 Inch | 167.6 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.4 Inch | 238 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 20 Millimeter |
| Insert Part Number | UKX20 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
