Specifications

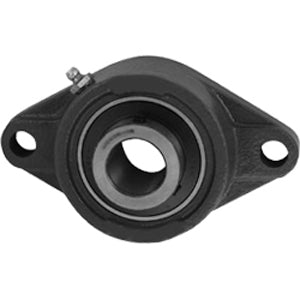

| title | UGFL312-39 |
| price | $ 492.31 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 6.36 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 14 |
| Bore | 2.438 Inch | 61.925 Millimeter |
| EAN | 0808250272006 |
| Other Features | Single Row | Spherical | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527080 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 3.126 Inch | 79.4 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 8.344 Inch | 211.938 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.3 Inch | 211 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 1 Inch |
| Insert Part Number | UG312-39 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
