FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

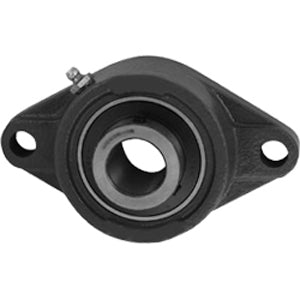

| title | UGFL310 |
| price | $ 283.15 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 4.09 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 9 |
| Bore | 1.969 Inch | 50 Millimeter |
| EAN | 0808250254781 |
| Other Features | Single Row | Spherical | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527077 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.622 Inch | 66.6 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 7.362 Inch | 187 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.4 Inch | 188 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 22 Millimeter |
| Insert Part Number | UG310 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
