Specifications

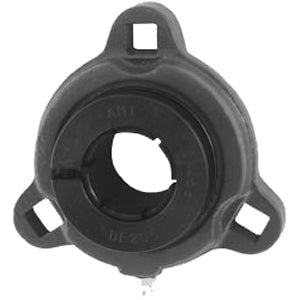

| title | UETM206-20NP |
| price | $ 163.54 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.608 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.35 |
| Bore | 1.25 Inch | 31.75 Millimeter |
| EAN | 0808250333752 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 529084 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.567 Inch | 39.8 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.1 Inch | 78.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.6 Inch | 90.5 Millimeter |
| Housing Style | 3 Bolt Flange Block |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | UE206-20 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Pilot Configuration | No Pilot |
