Specifications

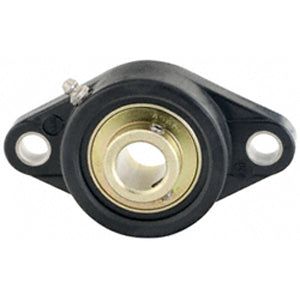

| title | UELX205-16MZ20B |
| price | $ 219.56 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.36 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 0.8 |
| Bore | 1 Inch | 25.4 Millimeter |
| Other Features | Single Row | Spherical | Normal Duty | Kanigen Coated Insert | Black Housing |
| Relubricatable | Yes |
| Global Part Number GPN | 528586 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.394 Inch | 35.4 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.992 Inch | 76 Millimeter |
| Nominal Bolt Circle Diameter Round | 3 Inch | 76 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 5/16 Inch |
| Insert Part Number | UE205-16MZ20 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
