Specifications

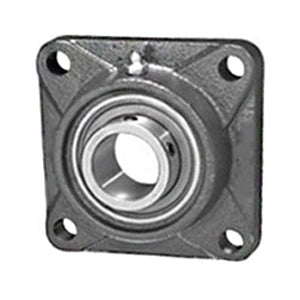

| title | UELFU206-101D1 |
| price | $ 52.89 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 2.9 |
| Bore | 1.063 Inch | 27 Millimeter |
| EAN | 4547359504880 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 552501 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 1.906 Inch | 48.412 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Bolt Spacing | 3.25 Inch | 82.55 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.7 Inch | 119.4 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | UEL206-101D1W3 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | No Pilot |
