Specifications
| title | UELFLU-1.9/16 |
| price | $ 103.40 / each |

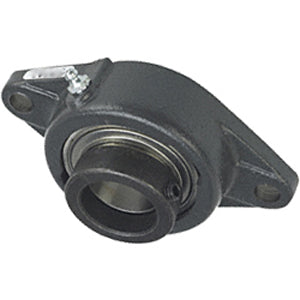

| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Bore | 1.563 Inch | 39.7 Millimeter |
| EAN | 4547359234190 |
| Other Features | Single Row | Wide Inner Race | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 552418 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 2.217 Inch | 56.3 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.656 Inch | 143.67 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.7 Inch | 144 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 33/64 Inch |
| Insert Part Number | A-UEL208-109D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | No Pilot |
