Specifications

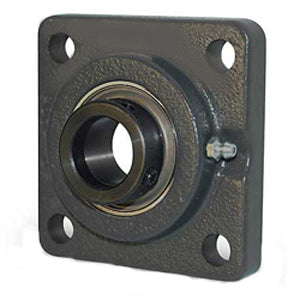

| title | UELF213-208D1 |
| price | $ 140.23 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 13 |
| Bore | 2.5 Inch | 63.5 Millimeter |
| EAN | 4547359505504 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Has Flinger | With Set Screw |
| Relubricatable | Yes |
| Global Part Number GPN | 552515 |
| Mounting Method | Eccentric Collar |
| Length Thru Bore | 3.374 Inch | 85.7 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.859 Inch | 148.819 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.3 Inch | 210.8 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 9/16 Inch |
| Insert Part Number | UEL213-208D1W3 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | No Pilot |
