Specifications

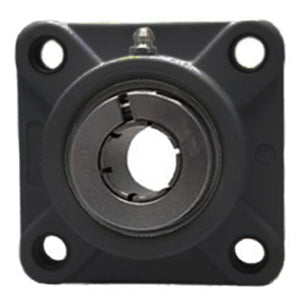

| title | UEFPL204B |
| price | $ 83.30 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.37 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 0.82 |
| Bore | 0.787 Inch | 20 Millimeter |
| EAN | 0808250136261 |
| Other Features | Single Row | Spherical | Normal Duty | Black Housing | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 534116 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.299 Inch | 33 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 2.52 Inch | 64 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.6 Inch | 90.5 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 10 Millimeter |
| Insert Part Number | UE204 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
