FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

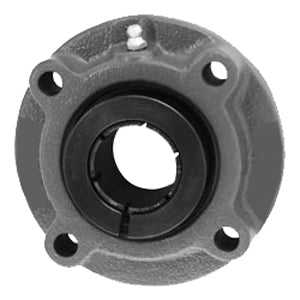

| title | UEFCS206-18NP |
| price | $ 115.54 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.11 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 2.44 |
| Bore | 1.125 Inch | 28.575 Millimeter |
| EAN | 0808250291007 |
| Other Features | Single Row | Spherical | Normal Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 528871 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.567 Inch | 39.8 Millimeter |
| Cartridge Pilot Diameter | 3 Inch | 76.2 Millimeter |
| Cartridge Pilot Depth | 0.25 Inch | 6.35 Millimeter |
| Bolt Spacing | 2.559 Inch | 65 Millimeter |
| Nominal Bolt Circle Diameter Round | 3.7 Inch | 95 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/16 Inch |
| Insert Part Number | UE206-18 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Pilot Configuration | With Pilot |
