Specifications

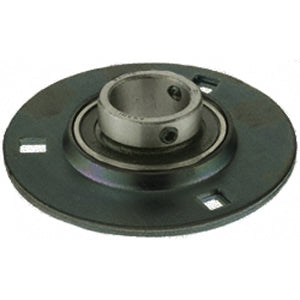

| title | UEFBL207B |
| price | $ 166.27 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 0.81 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 1.79 |
| Bore | 1.378 Inch | 35 Millimeter |
| EAN | 0808250212866 |
| Other Features | Single Row | Spherical | Normal Duty | Black Housing | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 534071 |
| Mounting Method | Concentric Collar |
| Length Thru Bore | 1.728 Inch | 43.9 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 1.26 Inch | 32 Millimeter |
| Nominal Bolt Circle Diameter Round | 0 Inch | 0 Millimeter |
| Housing Style | 3 Bolt Flange Bracket |
| Number of Mounting Holes | 3 |
| Mounting Bolts | 8 Millimeter |
| Insert Part Number | UE207 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Thermoplastic |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
