FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

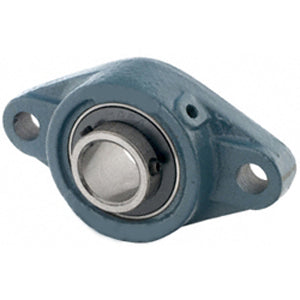

| title | UCFT209NP |
| price | $ 108.65 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.789 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 4.46 |
| Bore | 1.772 Inch | 45 Millimeter |
| EAN | 0808250325924 |
| Other Features | Single Row | Spherical | Normal Duty | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 528369 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 5.843 Inch | 148.4 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.8 Inch | 148 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 14 Millimeter |
| Insert Part Number | UC209 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
