Specifications

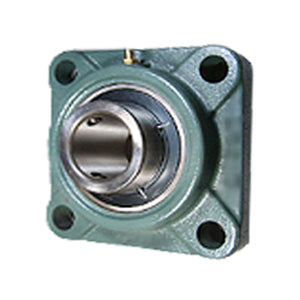

| title | UCFSG318D1 |
| price | $ 2,261.84 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 52.911 |
| Bore | 3.543 Inch | 90 Millimeter |
| EAN | 4547359501803 |
| Other Features | Single Row | Heavy Duty | Wide Inner Race | Spigot Joint | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 552610 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.78 Inch | 96 Millimeter |
| Cartridge Pilot Diameter | 9.449 Inch | 240 Millimeter |
| Cartridge Pilot Depth | 0.787 Inch | 20 Millimeter |
| Bolt Spacing | 8.504 Inch | 216 Millimeter |
| Nominal Bolt Circle Diameter Round | 12 Inch | 305.5 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 30 Millimeter |
| Insert Part Number | UC318D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Stamped Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
