Specifications

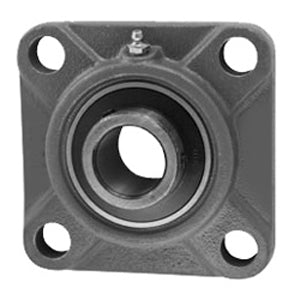

| title | UCFS322-71 |
| price | $ 1,657.15 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 36.956 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 81.4 |
| Bore | 4.438 Inch | 112.725 Millimeter |
| EAN | 0808250278800 |
| Other Features | Single Row | Spherical | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527539 |
| Mounting Method | Set Screw |
| Length Thru Bore | 4.606 Inch | 117 Millimeter |
| Cartridge Pilot Diameter | 11.811 Inch | 300 Millimeter |
| Cartridge Pilot Depth | 0.984 Inch | 25 Millimeter |
| Bolt Spacing | 10.472 Inch | 266 Millimeter |
| Nominal Bolt Circle Diameter Round | 14.8 Inch | 376.2 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 36 Millimeter |
| Insert Part Number | UC322-71 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
