FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

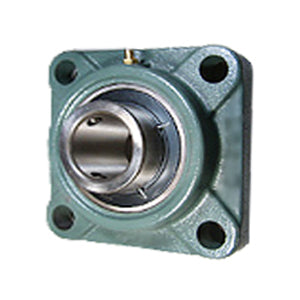

| title | UCFS319D1 |
| price | $ 954.89 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 53 |
| Bore | 3.74 Inch | 95 Millimeter |
| EAN | 4547359216912 |
| Other Features | Single Row | Heavy Duty | Wide Inner Race | Spigot Joint | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 552634 |
| Mounting Method | Set Screw |
| Length Thru Bore | 4.055 Inch | 103 Millimeter |
| Cartridge Pilot Diameter | 9.843 Inch | 250 Millimeter |
| Cartridge Pilot Depth | 0.787 Inch | 20 Millimeter |
| Bolt Spacing | 8.976 Inch | 228 Millimeter |
| Nominal Bolt Circle Diameter Round | 12.7 Inch | 322.4 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 30 Millimeter |
| Insert Part Number | UC319D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
