FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

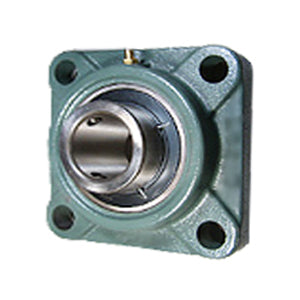

| title | UCFS313D1 |
| price | $ 318.68 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 19 |
| Bore | 2.559 Inch | 65 Millimeter |
| EAN | 4547359216691 |
| Other Features | Single Row | Heavy Duty | Wide Inner Race | Spigot Joint | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 552642 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.953 Inch | 75 Millimeter |
| Cartridge Pilot Diameter | 6.89 Inch | 175 Millimeter |
| Cartridge Pilot Depth | 0.709 Inch | 18 Millimeter |
| Bolt Spacing | 6.535 Inch | 166 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.2 Inch | 233.3 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 20 Millimeter |
| Insert Part Number | UC313D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
