Specifications

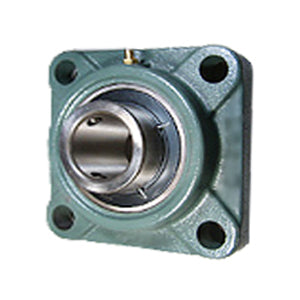

| title | UCFS312D1 |
| price | $ 259.09 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 6.81 |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 15 |
| Bore | 2.362 Inch | 60 Millimeter |
| Other Features | Single Row | Heavy Duty | Wide Inner Race | Spigot Joint | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 552643 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.795 Inch | 71 Millimeter |
| Cartridge Pilot Diameter | 6.299 Inch | 160 Millimeter |
| Cartridge Pilot Depth | 0.551 Inch | 14 Millimeter |
| Bolt Spacing | 5.906 Inch | 150 Millimeter |
| Nominal Bolt Circle Diameter Round | 8.4 Inch | 212.1 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 20 Millimeter |
| Insert Part Number | UC312D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
