Specifications

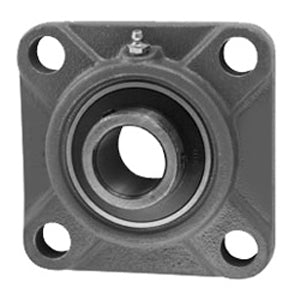

| title | UCFS311-32 |
| price | $ 267.91 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 6.27 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 13.8 |
| Bore | 2 Inch | 50.8 Millimeter |
| EAN | 0808250248964 |
| Other Features | Single Row | Spherical | Heavy Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527534 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.598 Inch | 66 Millimeter |
| Cartridge Pilot Diameter | 5.906 Inch | 150 Millimeter |
| Cartridge Pilot Depth | 0.512 Inch | 13 Millimeter |
| Bolt Spacing | 5.512 Inch | 140 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.8 Inch | 198 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 20 Millimeter |
| Insert Part Number | UC311-32 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
