NTN

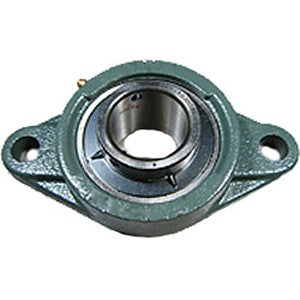

NTN UCFL305D1

  • Write a review
  • FREE SHIPPING on orders over $100
    • $64.69 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UCFL305D1
    price $ 76.10 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name NTN
    Inch - Metric Metric
    Brand NTN
    Weight / LBS 3.3
    Bore 0.984 Inch | 25 Millimeter
    EAN 4547359216066
    Other Features Single Row | Heavy Duty | Wide Inner Race | Has Flinger
    Relubricatable Yes
    Global Part Number GPN 552601
    Mounting Method Set Screw
    Length Thru Bore 1.496 Inch | 38 Millimeter
    Cartridge Pilot Diameter 0 Inch | 0 Millimeter
    Cartridge Pilot Depth 0 Inch | 0 Millimeter
    Bolt Spacing 4.449 Inch | 113 Millimeter
    Nominal Bolt Circle Diameter Round 4.4 Inch | 111 Millimeter
    Housing Style 2 Bolt Flange Block
    Number of Mounting Holes 2
    Mounting Bolts 16 Millimeter
    Insert Part Number UC305D1
    Housing Configuration 1 Piece Solid
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals Single Lip Land Riding
    Pilot Configuration No Pilot
