Specifications

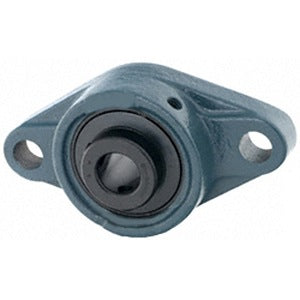

| title | UCFL217-52C4HR23 |
| price | $ 1,055.02 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 7.999 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 20.94 |
| Bore | 3.25 Inch | 82.55 Millimeter |
| EAN | 0808250277186 |
| Other Features | Single Row | Spherical | Normal Duty | High Temperature Range Up to 450 Degree F | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 535865 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.374 Inch | 85.7 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 9.766 Inch | 248.056 Millimeter |
| Nominal Bolt Circle Diameter Round | 9.8 Inch | 248 Millimeter |
| Housing Style | 2 Bolt Flange Block |
| Number of Mounting Holes | 2 |
| Mounting Bolts | 7/8 Inch |
| Insert Part Number | UC217-52C4HR23 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | No Pilot |
