Specifications
| title | UCFG218D1Y-480 |
| price | $ 1,887.76 / each |

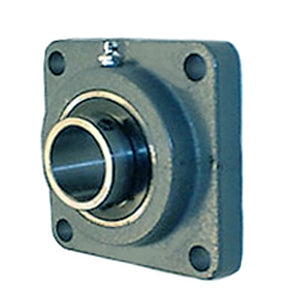

| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 33.069 |
| Bore | 3.543 Inch | 90 Millimeter |
| EAN | 4547359501292 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 553909 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.78 Inch | 96 Millimeter |
| Cartridge Pilot Diameter | 0 Inch | 0 Millimeter |
| Cartridge Pilot Depth | 0 Inch | 0 Millimeter |
| Bolt Spacing | 7.362 Inch | 187 Millimeter |
| Nominal Bolt Circle Diameter Round | 10.4 Inch | 265 Millimeter |
| Housing Style | 4 Bolt Square Flange Block |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 20 Millimeter |
| Insert Part Number | UC218D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Stamped Steel |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | No Pilot |
