FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

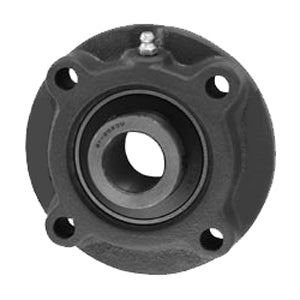

| title | UCFCX10-31 |
| price | $ 142.32 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 2.978 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 6.2 |
| Bore | 1.938 Inch | 49.225 Millimeter |
| EAN | 0808250323234 |
| Other Features | Single Row | Spherical | Medium Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527503 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.189 Inch | 55.6 Millimeter |
| Cartridge Pilot Diameter | 4.646 Inch | 118 Millimeter |
| Cartridge Pilot Depth | 0.63 Inch | 16 Millimeter |
| Bolt Spacing | 3.8 Inch | 95.5 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.4 Inch | 138 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 12 Millimeter |
| Insert Part Number | UCX10-31 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
