Specifications

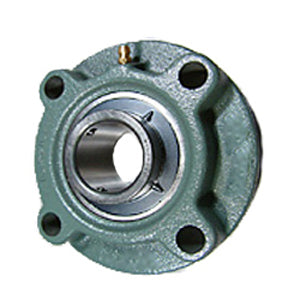

| title | UCFCX10-200D1 |
| price | $ 171.43 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 6.8 |
| Bore | 2 Inch | 50.8 Millimeter |
| EAN | 4547359212914 |
| Other Features | Single Row | Medium Duty | Wide Inner Race | Spigot Joint | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 553736 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.189 Inch | 55.6 Millimeter |
| Cartridge Pilot Diameter | 4.646 Inch | 118 Millimeter |
| Cartridge Pilot Depth | 0.625 Inch | 15.875 Millimeter |
| Bolt Spacing | 3.781 Inch | 96.037 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.4 Inch | 138 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 7/16 Inch |
| Insert Part Number | UCX10-200D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
