FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

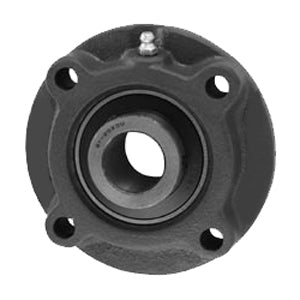

| title | UCFCX09-28 |
| price | $ 123.54 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 2.452 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 5.4 |
| Bore | 1.75 Inch | 44.45 Millimeter |
| Other Features | Single Row | Spherical | Medium Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527502 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.031 Inch | 51.6 Millimeter |
| Cartridge Pilot Diameter | 4.25 Inch | 107.95 Millimeter |
| Cartridge Pilot Depth | 0.472 Inch | 12 Millimeter |
| Bolt Spacing | 3.6 Inch | 91.9 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.1 Inch | 130 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 12 Millimeter |
| Insert Part Number | UCX09-28 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
