IPTCI

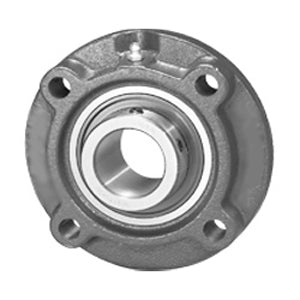

IPTCI UCFCX 09 45MM

  • Write a review
  • FREE SHIPPING on orders over $100
    • $81.01 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UCFCX 09 45MM
    price $ 95.30 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name IPTCI BEARINGS
    Weight / kgm 2.585
    Inch - Metric Metric
    Brand IPTCI
    Weight / LBS 5.7
    Bore 1.772 Inch | 45 Millimeter
    Other Features Single Row | Spherical | Medium Duty | Wide Inner Race
    Relubricatable Yes
    Global Part Number GPN 557651
    Mounting Method Set Screw
    Length Thru Bore 2.031 Inch | 51.6 Millimeter
    Cartridge Pilot Diameter 4.252 Inch | 108 Millimeter
    Cartridge Pilot Depth 0.472 Inch | 12 Millimeter
    Bolt Spacing 3.6 Inch | 91.9 Millimeter
    Nominal Bolt Circle Diameter Round 5.1 Inch | 130 Millimeter
    Housing Style 4 Bolt Round Flange Cartridge
    Number of Mounting Holes 4
    Mounting Bolts 7/16 Inch
    Insert Part Number UCX09
    Housing Configuration 1 Piece Solid
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals B Seal
    Pilot Configuration With Pilot
