Specifications
| title | UCFCSX14 |
| price | $ 314.07 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 7.17 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 15.8 |
| Bore | 2.756 Inch | 70 Millimeter |
| EAN | 0808250323111 |
| Other Features | Single Row | Spherical | Medium Duty |
| Relubricatable | Yes |
| Global Part Number GPN | 527515 |
| Mounting Method | Set Screw |
| Length Thru Bore | 3.063 Inch | 77.8 Millimeter |
| Cartridge Pilot Diameter | 6.457 Inch | 164 Millimeter |
| Cartridge Pilot Depth | 0.781 Inch | 19.837 Millimeter |
| Bolt Spacing | 5.3 Inch | 134.7 Millimeter |
| Nominal Bolt Circle Diameter Round | 7.5 Inch | 190 Millimeter |

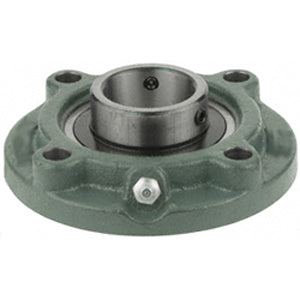

| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 5/8 Inch |
| Insert Part Number | UCX14 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
