IPTCI

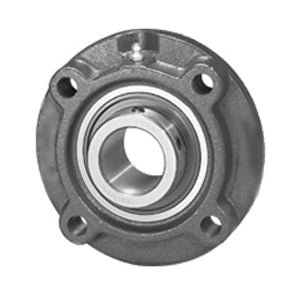

IPTCI UCFCS 206 30MM

  • Write a review
  • FREE SHIPPING on orders over $100
    • $31.53 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UCFCS 206 30MM
    price $ 37.09 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name IPTCI
    Inch - Metric Metric
    Brand IPTCI
    Weight / LBS 2.6
    Bore 1.181 Inch | 30 Millimeter
    Other Features Single Row | Spherical | Standard Duty | Wide Inner Race
    Relubricatable Yes
    Global Part Number GPN 557810
    Mounting Method Set Screw
    Length Thru Bore 1.5 Inch | 38.1 Millimeter
    Cartridge Pilot Diameter 2.992 Inch | 76 Millimeter
    Cartridge Pilot Depth 0.236 Inch | 6 Millimeter
    Bolt Spacing 2.563 Inch | 65.1 Millimeter
    Nominal Bolt Circle Diameter Round 3.6 Inch | 90.5 Millimeter
    Housing Style 4 Bolt Round Flange Cartridge
    Number of Mounting Holes 4
    Mounting Bolts 5/16 Inch
    Insert Part Number UC206
    Housing Configuration 1 Piece Solid
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals B Seal
    Pilot Configuration With Pilot
