Specifications

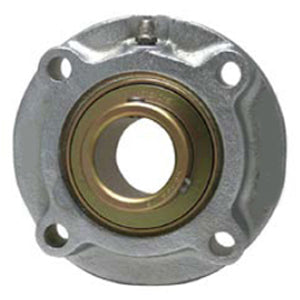

| title | UCFCF208C4HR5 |
| price | $ 119.54 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.798 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 4.6 |
| Bore | 1.575 Inch | 40 Millimeter |
| EAN | 0808250174607 |
| Other Features | Single Row | Spherical | Normal Duty | High Temperature Range Up to 400 Degree F | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 529382 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Cartridge Pilot Diameter | 3.622 Inch | 92 Millimeter |
| Cartridge Pilot Depth | 0.472 Inch | 12 Millimeter |
| Bolt Spacing | 3.094 Inch | 78.6 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.4 Inch | 111 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 10 Millimeter |
| Insert Part Number | UC208C4HR5 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
