Specifications

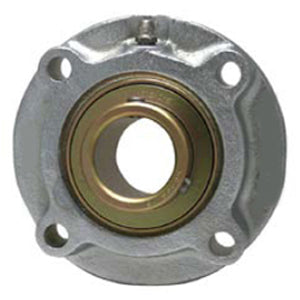

| title | UCFCF207-23NPMZ2 |
| price | $ 135.45 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.68 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 4.2 |
| Bore | 1.438 Inch | 36.525 Millimeter |
| EAN | 0808250322442 |
| Other Features | Single Row | Spherical | Normal Duty | Zinc Coated Insert | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 529379 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.689 Inch | 42.9 Millimeter |
| Cartridge Pilot Diameter | 3.625 Inch | 92.08 Millimeter |
| Cartridge Pilot Depth | 0.469 Inch | 11.9 Millimeter |
| Bolt Spacing | 3.094 Inch | 78.6 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.4 Inch | 111 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | UC207-23MZ2 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
