FREE SHIPPING on orders over $100
Offer price breaks when you order a larger quantify.
In Stock
Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
Specifications

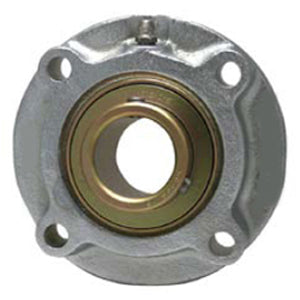

| title | UCFCF206-19NP |
| price | $ 97.92 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.308 |
| Inch - Metric | Inch |
| Brand | AMI BEARINGS |
| Weight / LBS | 3.9 |
| Bore | 1.188 Inch | 30.175 Millimeter |
| EAN | 0808250322381 |
| Other Features | Single Row | Spherical | Normal Duty | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 529330 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.5 Inch | 38.1 Millimeter |
| Cartridge Pilot Diameter | 3.375 Inch | 85.725 Millimeter |
| Cartridge Pilot Depth | 0.422 Inch | 10.719 Millimeter |
| Bolt Spacing | 2.906 Inch | 73.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.1 Inch | 105 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 3/8 Inch |
| Insert Part Number | UC206-19 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Nickel Coated Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
