Specifications

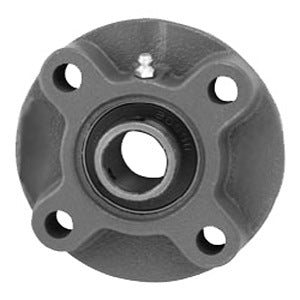

| title | UCFC211D1 |
| price | $ 155.85 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Weight / kgm | 4.09 |
| Inch - Metric | Metric |
| Brand | NTN |
| Weight / LBS | 9 |
| Bore | 2.165 Inch | 55 Millimeter |
| EAN | 4547359000825 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Spigot Joint | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 553750 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.189 Inch | 55.6 Millimeter |
| Cartridge Pilot Diameter | 4.921 Inch | 125 Millimeter |
| Cartridge Pilot Depth | 0.472 Inch | 12 Millimeter |
| Bolt Spacing | 4.177 Inch | 106.1 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.9 Inch | 150 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 16 Millimeter |
| Insert Part Number | UC211D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
