Specifications

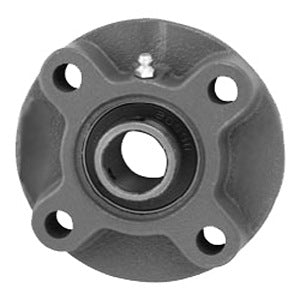

| title | UCFC209-111D1 |
| price | $ 140.33 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | NTN |
| Inch - Metric | Inch |
| Brand | NTN |
| Weight / LBS | 6 |
| Bore | 1.688 Inch | 42.875 Millimeter |
| EAN | 4547359213591 |
| Other Features | Single Row | Light Duty | Wide Inner Race | Spigot Joint | Has Flinger |
| Relubricatable | Yes |
| Global Part Number GPN | 553743 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Cartridge Pilot Diameter | 4.134 Inch | 105 Millimeter |
| Cartridge Pilot Depth | 0.469 Inch | 11.9 Millimeter |
| Bolt Spacing | 3.672 Inch | 93.269 Millimeter |
| Nominal Bolt Circle Diameter Round | 5.2 Inch | 132 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 1/2 Inch |
| Insert Part Number | UC209-111D1 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Single Lip Land Riding |
| Pilot Configuration | With Pilot |
