Specifications

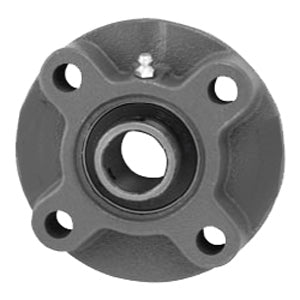

| title | UCFC208C4HR23 |
| price | $ 209.91 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | ASAHI BEARINGS |
| Weight / kgm | 1.87 |
| Inch - Metric | Metric |
| Brand | AMI BEARINGS |
| Weight / LBS | 4.68 |
| Bore | 1.575 Inch | 40 Millimeter |
| EAN | 0808250321940 |
| Other Features | Single Row | Spherical | Normal Duty | High Temperature Range Up to 450 Degree F | Has Slinger |
| Relubricatable | Yes |
| Global Part Number GPN | 528840 |
| Mounting Method | Set Screw |
| Length Thru Bore | 1.937 Inch | 49.2 Millimeter |
| Cartridge Pilot Diameter | 3.937 Inch | 100 Millimeter |
| Cartridge Pilot Depth | 0.394 Inch | 10 Millimeter |
| Bolt Spacing | 3.339 Inch | 84.8 Millimeter |
| Nominal Bolt Circle Diameter Round | 4.7 Inch | 120 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 12 Millimeter |
| Insert Part Number | UC208C4HR23 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | Contact Seal |
| Pilot Configuration | With Pilot |
