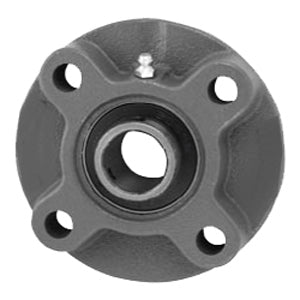

AMI BEARINGS UCFC207-22

  • Write a review
  • FREE SHIPPING on orders over $100
    • $63.58 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UCFC207-22
    price $ 74.80 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name ASAHI BEARINGS
    Weight / kgm 1.54
    Inch - Metric Inch
    Brand AMI BEARINGS
    Weight / LBS 3.4
    Bore 1.375 Inch | 34.925 Millimeter
    EAN 0808250321841
    Other Features Single Row | Spherical | Normal Duty
    Relubricatable Yes
    Global Part Number GPN 527619
    Mounting Method Set Screw
    Length Thru Bore 1.689 Inch | 42.9 Millimeter
    Cartridge Pilot Diameter 3.543 Inch | 90 Millimeter
    Cartridge Pilot Depth 0.315 Inch | 8 Millimeter
    Bolt Spacing 3.1 Inch | 78.5 Millimeter
    Nominal Bolt Circle Diameter Round 4.4 Inch | 111 Millimeter
    Housing Style 4 Bolt Round Flange Cartridge
    Number of Mounting Holes 4
    Mounting Bolts 12 Millimeter
    Insert Part Number UC207-22
    Housing Configuration 1 Piece Solid
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals Contact Seal
    Pilot Configuration With Pilot
