NTN

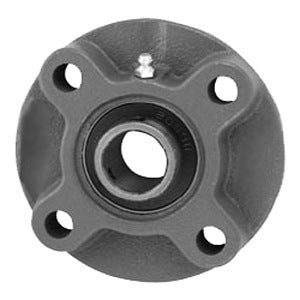

NTN UCFC205D1

  • Write a review
  • FREE SHIPPING on orders over $100
    • $64.60 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UCFC205D1
    price $ 76.00 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name NTN
    Weight / kgm 1.003
    Inch - Metric Metric
    Brand NTN
    Weight / LBS 2.2
    Bore 0.984 Inch | 25 Millimeter
    EAN 4547359000764
    Other Features Single Row | Light Duty | Wide Inner Race | Spigot Joint | Has Flinger
    Relubricatable Yes
    Global Part Number GPN 553716
    Mounting Method Set Screw
    Length Thru Bore 1.343 Inch | 34.1 Millimeter
    Cartridge Pilot Diameter 2.756 Inch | 70 Millimeter
    Cartridge Pilot Depth 0.236 Inch | 6 Millimeter
    Bolt Spacing 2.504 Inch | 63.6 Millimeter
    Nominal Bolt Circle Diameter Round 3.5 Inch | 90 Millimeter
    Housing Style 4 Bolt Round Flange Cartridge
    Number of Mounting Holes 4
    Mounting Bolts 10 Millimeter
    Insert Part Number UC205D1
    Housing Configuration 1 Piece Solid
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals Single Lip Land Riding
    Pilot Configuration With Pilot
