Specifications

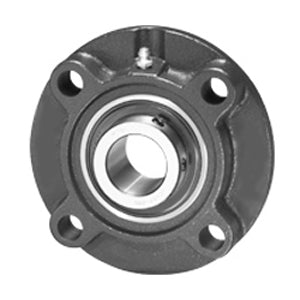

| title | UCFC 213 40 |
| price | $ 130.75 / each |
| Category | Flange Block Bearings |
| UNSPSC | 31171501 |
| Harmonized Tariff Code | 8483.20.40.40 |
| Manufacturer Name | IPTCI BEARINGS |
| Weight / kgm | 5.307 |
| Inch - Metric | Inch |
| Brand | IPTCI |
| Weight / LBS | 11.7 |
| Bore | 2.5 Inch | 63.5 Millimeter |
| Other Features | Single Row | Spherical | Standard Duty | Wide Inner Race |
| Relubricatable | Yes |
| Global Part Number GPN | 557918 |
| Mounting Method | Set Screw |
| Length Thru Bore | 2.563 Inch | 65.09 Millimeter |
| Cartridge Pilot Diameter | 5.709 Inch | 145 Millimeter |
| Cartridge Pilot Depth | 0.547 Inch | 13.894 Millimeter |
| Bolt Spacing | 4.732 Inch | 120.2 Millimeter |
| Nominal Bolt Circle Diameter Round | 6.6 Inch | 167.6 Millimeter |
| Housing Style | 4 Bolt Round Flange Cartridge |
| Number of Mounting Holes | 4 |
| Mounting Bolts | 11/16 Inch |
| Insert Part Number | UC213-40 |
| Housing Configuration | 1 Piece Solid |
| Housing Material | Cast Iron |
| Expansion / Non-expansion | Non-expansion |
| Seals | B Seal |
| Pilot Configuration | With Pilot |
