IPTCI

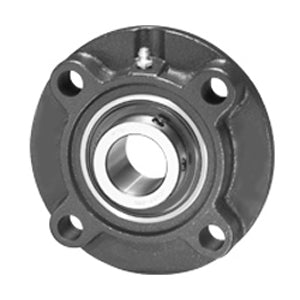

IPTCI UCFC 208 25

  • Write a review
  • FREE SHIPPING on orders over $100
    • $38.11 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UCFC 208 25
    price $ 44.83 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name IPTCI BEARINGS
    Weight / kgm 2.086
    Inch - Metric Inch
    Brand IPTCI
    Weight / LBS 4.6
    Bore 1.563 Inch | 39.7 Millimeter
    Other Features Single Row | Spherical | Standard Duty | Wide Inner Race
    Relubricatable Yes
    Global Part Number GPN 557758
    Mounting Method Set Screw
    Length Thru Bore 1.937 Inch | 49.2 Millimeter
    Cartridge Pilot Diameter 3.937 Inch | 100 Millimeter
    Cartridge Pilot Depth 0.406 Inch | 10.312 Millimeter
    Bolt Spacing 3.3 Inch | 84.9 Millimeter
    Nominal Bolt Circle Diameter Round 4.7 Inch | 120 Millimeter
    Housing Style 4 Bolt Round Flange Cartridge
    Number of Mounting Holes 4
    Mounting Bolts 1/2 Inch
    Insert Part Number UC208-25
    Housing Configuration 1 Piece Solid
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals B Seal
    Pilot Configuration With Pilot
