IPTCI

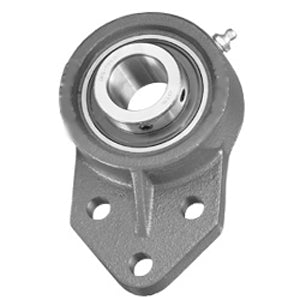

IPTCI UCFB 204 20MM

  • Write a review
  • FREE SHIPPING on orders over $100
    • $19.52 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UCFB 204 20MM
    price $ 22.96 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name IPTCI BEARINGS
    Weight / kgm 0.68
    Inch - Metric Metric
    Brand IPTCI
    Weight / LBS 1.5
    Bore 0.787 Inch | 20 Millimeter
    Other Features Single Row | Spherical | Standard Duty | Wide Inner Race
    Relubricatable Yes
    Global Part Number GPN 557141
    Mounting Method Set Screw
    Length Thru Bore 1.22 Inch | 31 Millimeter
    Cartridge Pilot Diameter 0 Inch | 0 Millimeter
    Cartridge Pilot Depth 0 Inch | 0 Millimeter
    Bolt Spacing 0.874 Inch | 22.2 Millimeter
    Nominal Bolt Circle Diameter Round 0 Inch | 0 Millimeter
    Housing Style 3 Bolt Flange Bracket
    Number of Mounting Holes 3
    Mounting Bolts 5/16 Inch
    Insert Part Number UC204
    Housing Configuration 1 Piece Solid
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals B Seal
    Pilot Configuration No Pilot
