IPTCI

IPTCI UCFB 204 12

  • Write a review
  • FREE SHIPPING on orders over $100
    • $18.86 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications

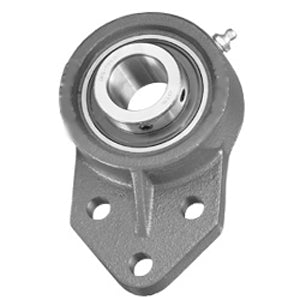

    title UCFB 204 12
    price $ 22.19 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name IPTCI BEARINGS
    Weight / kgm 0.68
    Inch - Metric Inch
    Brand IPTCI
    Weight / LBS 1.5
    Bore 0.75 Inch | 19.05 Millimeter
    Other Features Single Row | Spherical | Standard Duty | Wide Inner Race
    Relubricatable Yes
    Global Part Number GPN 557168
    Mounting Method Set Screw
    Length Thru Bore 1.221 Inch | 31.013 Millimeter
    Cartridge Pilot Diameter 0 Inch | 0 Millimeter
    Cartridge Pilot Depth 0 Inch | 0 Millimeter
    Bolt Spacing 0.875 Inch | 22.225 Millimeter
    Nominal Bolt Circle Diameter Round 0 Inch | 0 Millimeter
    Housing Style 3 Bolt Flange Bracket
    Number of Mounting Holes 3
    Mounting Bolts 5/16 Inch
    Insert Part Number UC204-12
    Housing Configuration 1 Piece Solid
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals B Seal
    Pilot Configuration No Pilot
