NTN

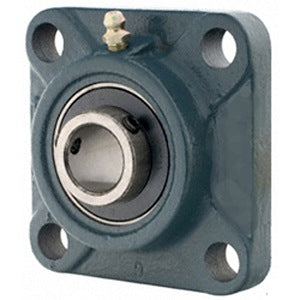

NTN UCF216HT2D1

  • Write a review
  • FREE SHIPPING on orders over $100
    • $358.45 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UCF216HT2D1
    price $ 421.70 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name NTN
    Inch - Metric Metric
    Brand NTN
    Weight / LBS 18
    Bore 3.15 Inch | 80 Millimeter
    EAN 4547359218961
    Other Features Single Row | Light Duty | Wide Inner Race | Has Flinger
    Relubricatable Yes
    Global Part Number GPN 552701
    Mounting Method Set Screw
    Length Thru Bore 3.252 Inch | 82.6 Millimeter
    Cartridge Pilot Diameter 0 Inch | 0 Millimeter
    Cartridge Pilot Depth 0 Inch | 0 Millimeter
    Bolt Spacing 6.496 Inch | 165 Millimeter
    Nominal Bolt Circle Diameter Round 9.2 Inch | 233.3 Millimeter
    Housing Style 4 Bolt Square Flange Block
    Number of Mounting Holes 4
    Mounting Bolts 20 Millimeter
    Insert Part Number UC216D1
    Housing Configuration 1 Piece Solid
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals Single Lip Land Riding
    Pilot Configuration No Pilot
