NTN

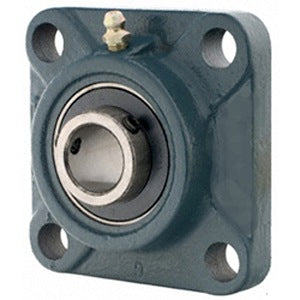

NTN UCF207-104D1

  • Write a review
  • FREE SHIPPING on orders over $100
    • $45.80 each
    Offer price breaks when you order a larger quantify.

    In Stock

    Leading time would be depends on our work efficiency and delivery schedule, usually within 2 business days.
    Shipping:Ships in 2 business day
    CONTACT US

    Specifications


    title UCF207-104D1
    price $ 53.88 / each
    Category Flange Block Bearings
    UNSPSC 31171501
    Harmonized Tariff Code 8483.20.40.40
    Manufacturer Name NTN
    Weight / kgm 1.547
    Inch - Metric Inch
    Brand NTN
    Weight / LBS 3.1
    Bore 1.25 Inch | 31.75 Millimeter
    EAN 4547359502152
    Other Features Single Row | Light Duty | Wide Inner Race | Has Flinger
    Relubricatable Yes
    Global Part Number GPN 552754
    Mounting Method Set Screw
    Length Thru Bore 1.689 Inch | 42.901 Millimeter
    Cartridge Pilot Diameter 0 Inch | 0 Millimeter
    Bolt Spacing 3.625 Inch | 92.075 Millimeter
    Nominal Bolt Circle Diameter Round 5.1 Inch | 129.5 Millimeter
    Housing Style 4 Bolt Square Flange Block
    Number of Mounting Holes 4
    Mounting Bolts 1/2 Inch
    Insert Part Number UC207-104D1
    Housing Configuration 1 Piece Solid
    Housing Material Cast Iron
    Expansion / Non-expansion Non-expansion
    Seals Single Lip Land Riding
    Pilot Configuration No Pilot
